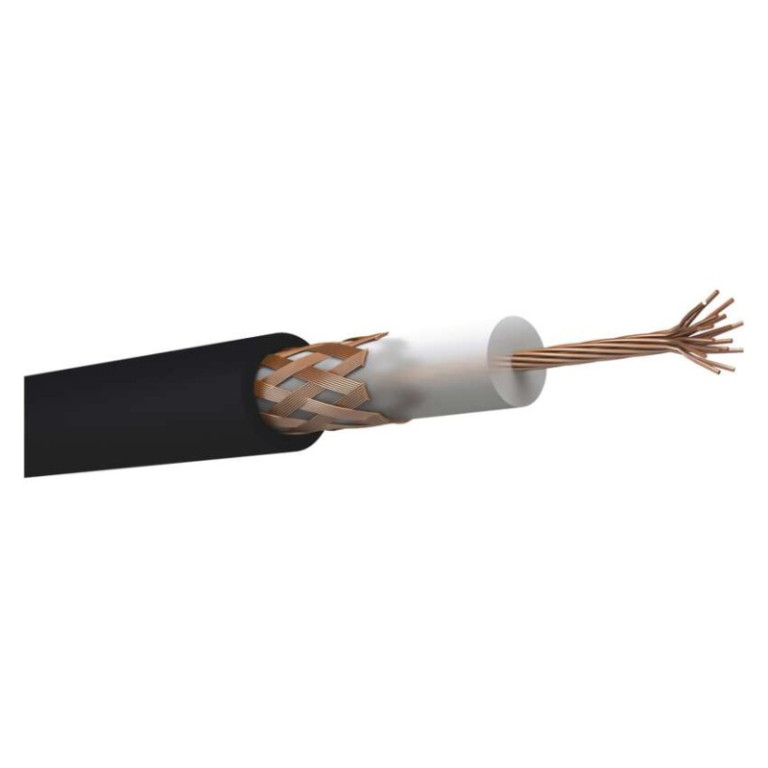

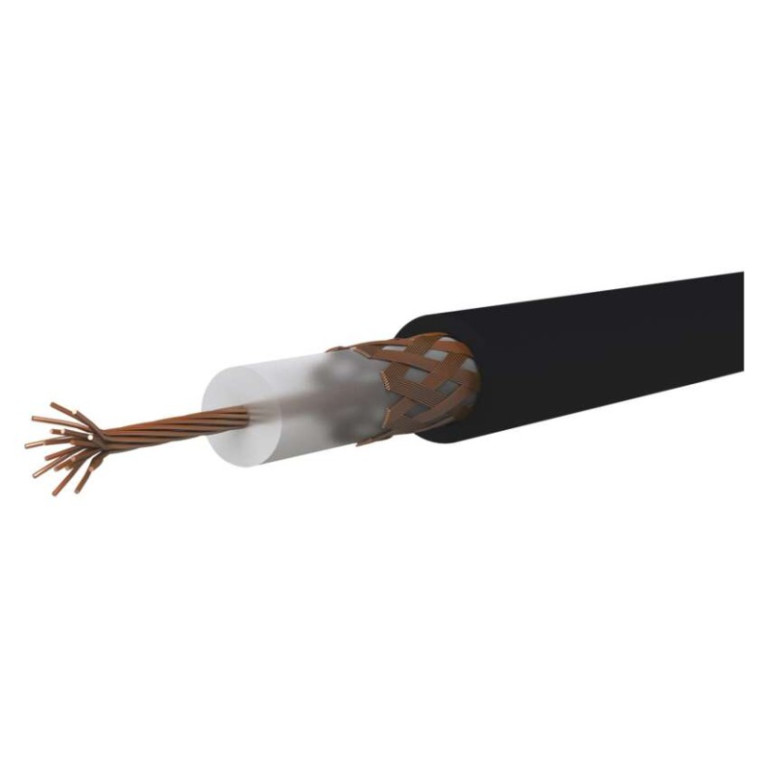

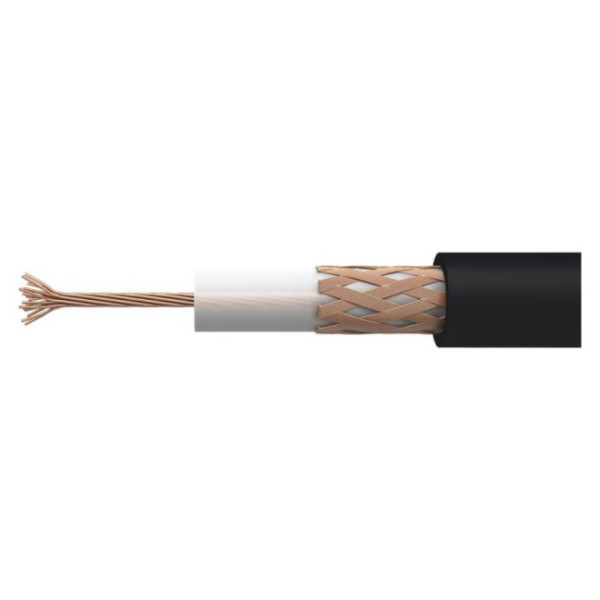

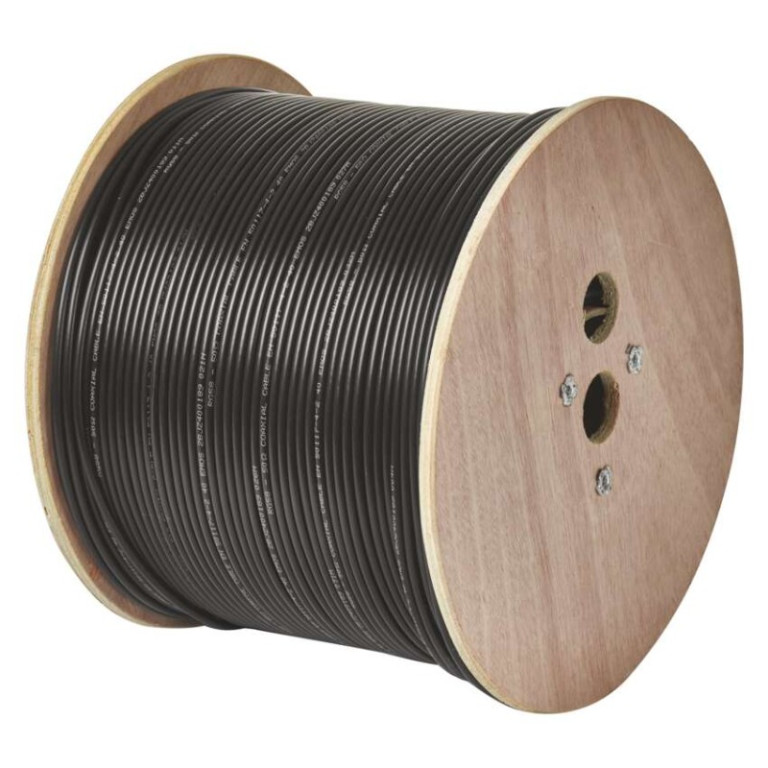

Coaxial cable RG58U, 500m
Availability:
In stock at manufacturer
Order. number:
18EMO02391
Code:
S5213
255,12 € excl. VAT
231,76 €
280,44 € incl. VAT
- APE = air dielectric: yes
- insulation colour of power supply conductors: not applicable
- cable sheath colour: black
- Shortening factor: 0,66
- dielectric type, diameter: SPE 3,0 mm
- recommended connector types - F crimp: not applicable
- recommended connector types - F screw connector: not applicable
- FPE = foam dielectric: not applicable
- weight (kg/km): 40.5
- impedance: 50 Ohm
- insulation of power supply conductors: not applicable
- insulation resistance between cores at 20 °C (MOhm/km): 500
- capacitance (pF/m): 100
- design of power supply wires: not applicable
- cable sheath material: PVC
- shielding material: copper clad aluminium (CCA)
- inner conductor material: wire (licna) copper (Cu)
- max. equal resistance at 20 °C, (Ohm/km) - outer core: 17,1
- max. equal resistance at 20 °C (Ohm/km) - inner core: 37,6
- max. attenuation at 20 °C (dB/100m) 1000 MHz: no
- max. attenuation at 20 °C (dB/100m) 100 MHz: 14.2
- max. attenuation at 20 °C (dB/100m) 10 MHz: 8.5
- max. attenuation at 20 °C (dB/100m) 2 000 MHz: no
- max. attenuation at 20 °C (dB/100m) 450 MHz: 32.9
- max. attenuation at 20 °C (dB/100m) 650 MHz: 47.2
- max. attenuation at 20 °C (dB/100m) 860 MHz: not applicable
- min. bending radius single/multiple: 25/50 mm
- min. reflection attenuation at 20 °C (dB) 10-300 MHz: 20
- min. reflection attenuation at 20 °C (dB) 300-600 MHz: 18
- min. reflection attenuation at 20 °C (dB) 600-900 MHz: 16
- min. shielding attenuation (dB) 10 ~ 800 MHz: 65
- Installation temperature: 5 °C to 60 °C
- hazardous substances: none
- UV resistant: yes
- PE = polyethylene dielectric: no
- PES = film layer: not applicable
- number of shield wires: 112×0.12 mm
- number of shields: 1
- Shielding coverage: 93 %

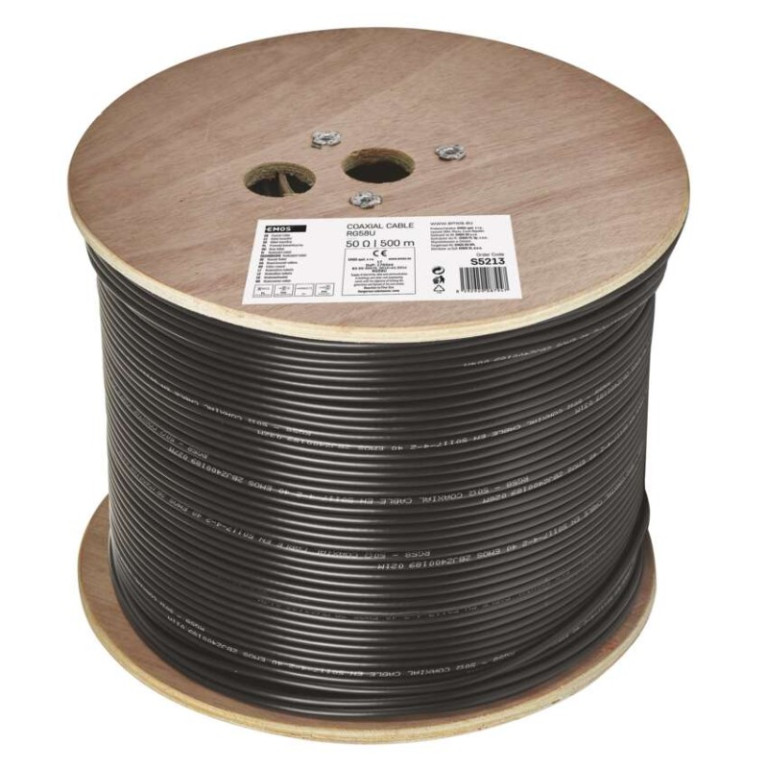

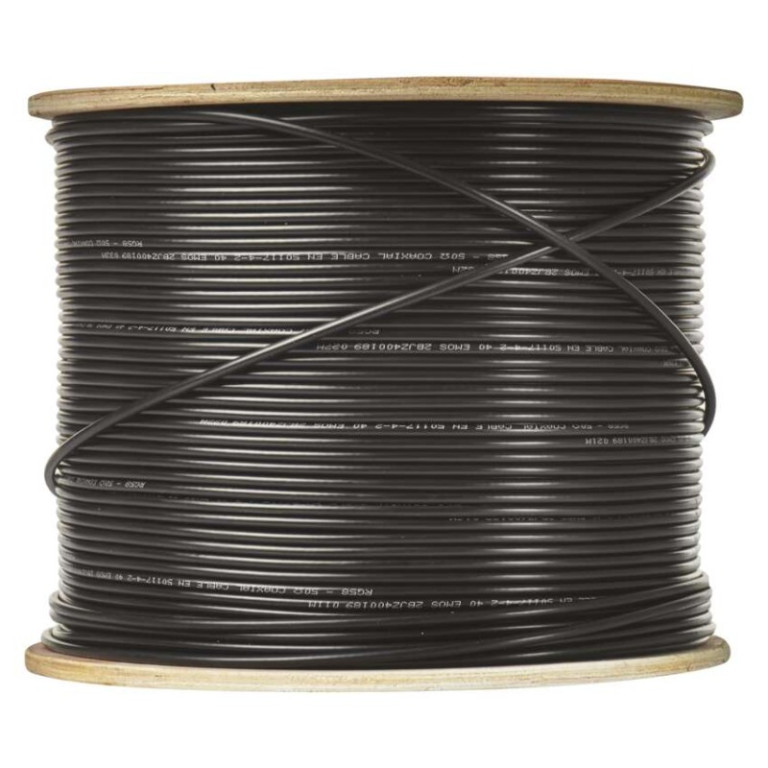

- sales package: 500 m, wooden spool
- cable sheath diameter: 5 mm
- shield diameter: 112 × 0.12 mm²
- Inner wire diameter: 17×0.19 mm
- cross-section of power supply wires: not applicable
- Storage temperature: -20 °C to 75 °C
- I.foil shielding: none
- Shielding II. foil: none
- reaction to fire class: eca
- type of coaxial cable: RG58/U
- suitable for outdoor use: yes

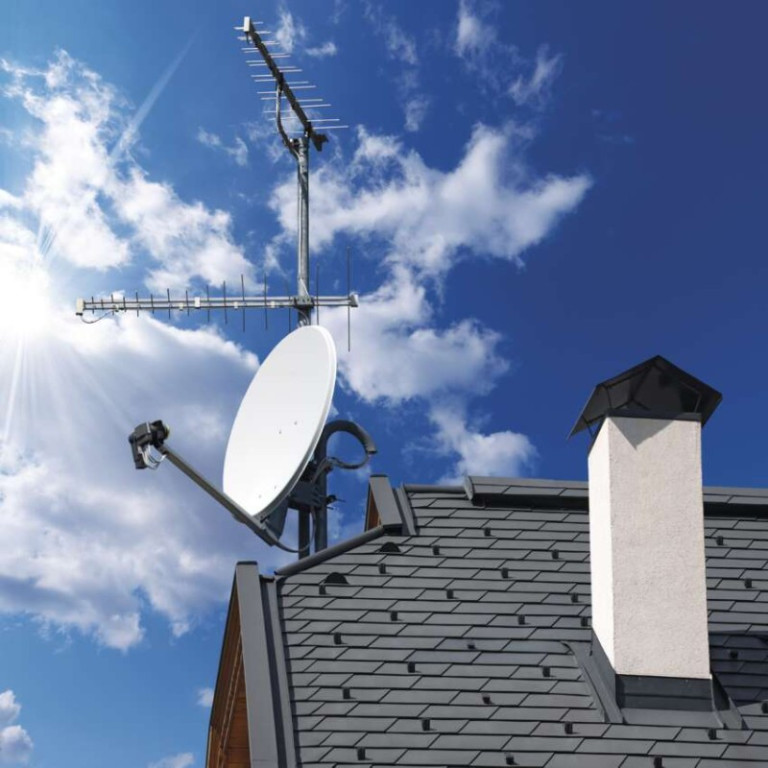

- intended use: shorter wiring, telecommunication antenna feeds
- warranty period: 2 years
- packing method - length: 500 m
- packing method - metre marking: 1-500 m
- packing method - coil type: wooden coil
