Coaxial cable CB125, 100m

Product description

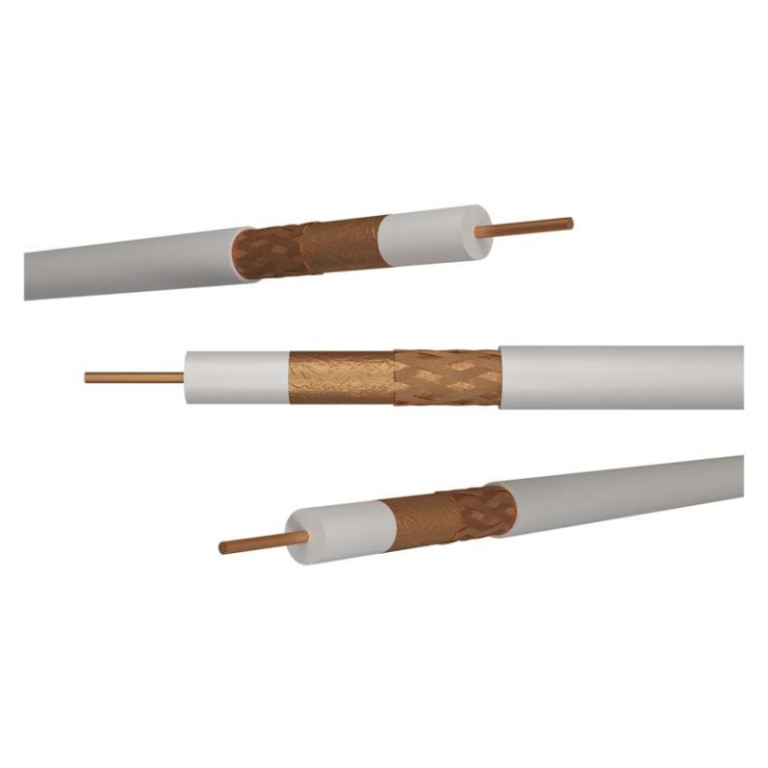

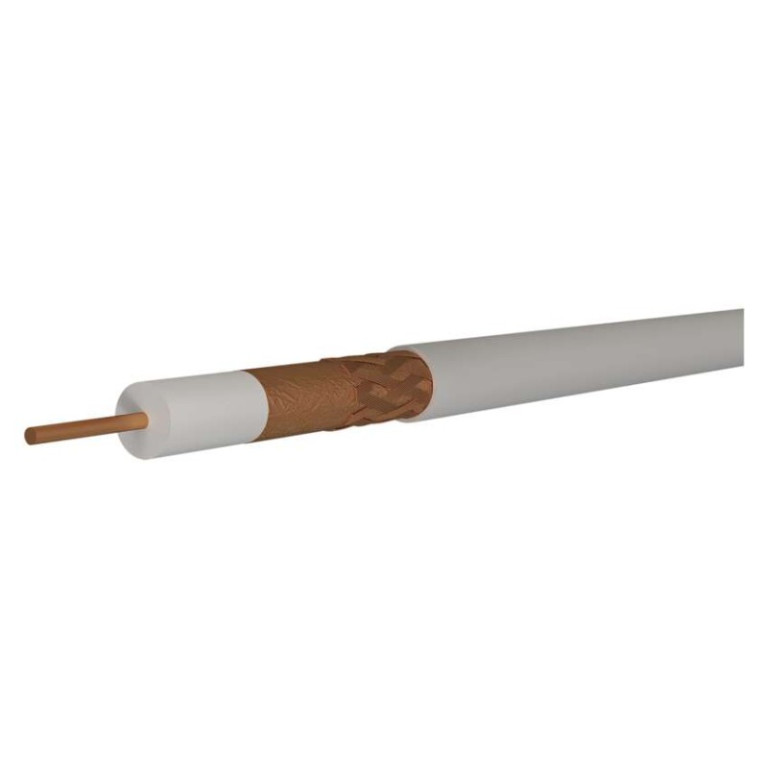

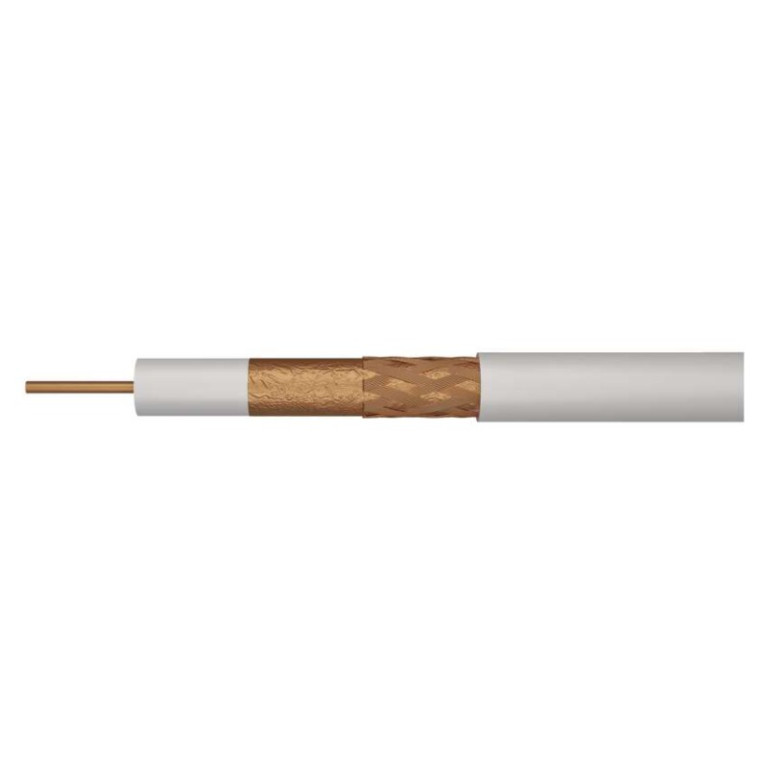

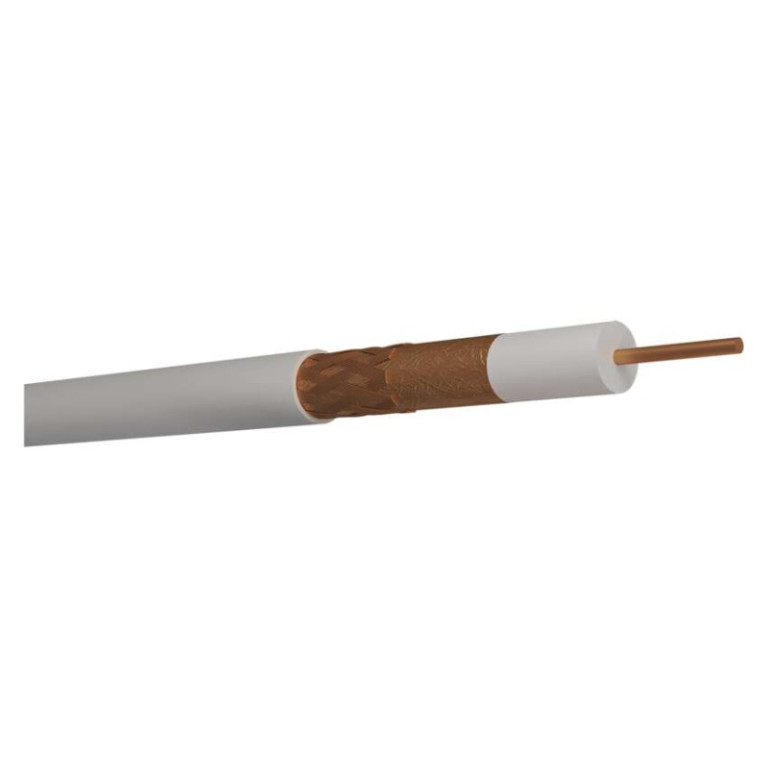

Universal coaxial cable type RG6 with center conductor made of pure copper BC and double shielding made of aluminum wire Al, white color.The cable is designed for all applications of transmission, TV and SAT signals in low demanding environment. The material used for the centre conductor and braid makes the cable extremely resistant to weather conditions, moisture and corrosion.

Product advantages

Coaxial cable with foam dielectric and outer diameter 6,8 mm. The cable is suitable for use as a subscriber cable feeder.

• APE = air dielectric: no
• insulation colour of power supply conductors: not applicable
• cable sheath colour: white
• Shortening factor: 0.83
• dielectric type, diameter: FPE 4,8 mm
• recommended connector types - F crimp: *K7220
• recommended connector types - F screw connector: *K7331
• FPE = foam dielectric: yes
• weight (kg/km): 40
• impedance: 75 Ohm
• insulation of power supply conductors: not applicable
• insulation resistance between cores at 20 °C (MOhm/km): 500
• capacitance (pF/m): 54
• design of power supply wires: not applicable
• cable sheath material: PVC (HD 624)
• shielding material: copper clad aluminium (CCA)
• inner conductor material: copper (Cu)
• max. equal resistance at 20 °C, (Ohm/km) - outer core: 38,9
• max. equal resistance at 20 °C (Ohm/km) - inner core: 23,9
• max. attenuation at 20 °C (dB/100m) 1000 MHz: 21.3
• max. attenuation at 20 °C (dB/100m) 100 MHz: 7.1
• max. attenuation at 20 °C (dB/100m) 10 MHz: 2.28
• max. attenuation at 20 °C (dB/100m) 2,000 MHz: 31.5
• max. attenuation at 20 °C (dB/100m) 450 MHz: 14.4
• max. attenuation at 20 °C (dB/100m) 650 MHz: 17.6
• max. attenuation at 20 °C (dB/100m) 860 MHz: 20.6
• min. bending radius single/multiple: 30/60 mm
• min. reflection attenuation at 20 °C (dB) 10-300 MHz: 25
• min. reflection attenuation at 20 °C (dB) 300-600 MHz: 23
• min. reflection attenuation at 20 °C (dB) 600-900 MHz: 20
• min. shielding attenuation (dB) 10 ~ 800 MHz: 77
• Installation temperature: 5 °C to 60 °C
• hazardous substances: none
• UV resistant: no
• PE = polyethylene dielectric: FPE
• PES = film layer: no
• number of shield wires: 64×0.12 mm
• number of shields: 2
• Shielding coverage: 40%

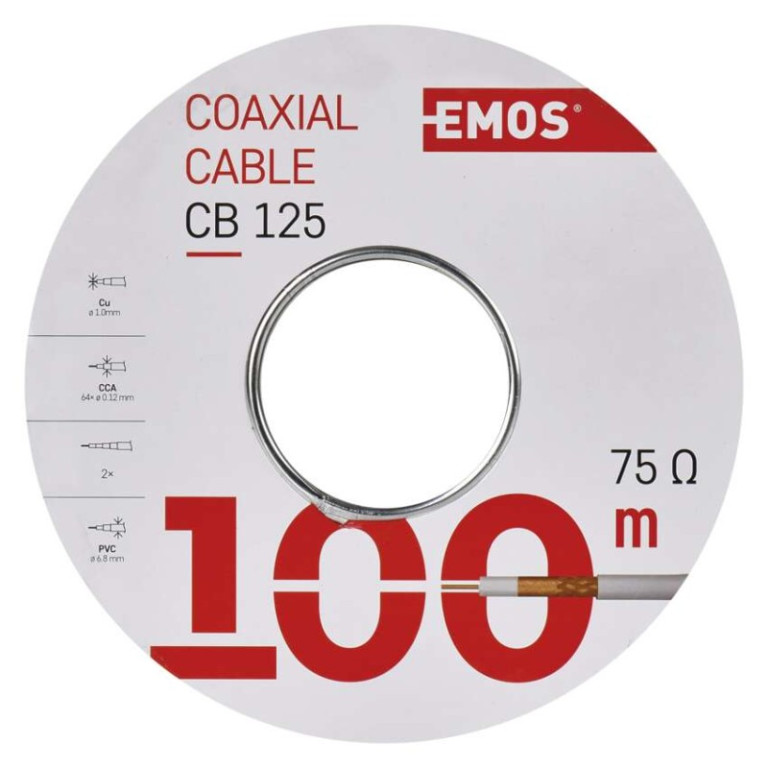

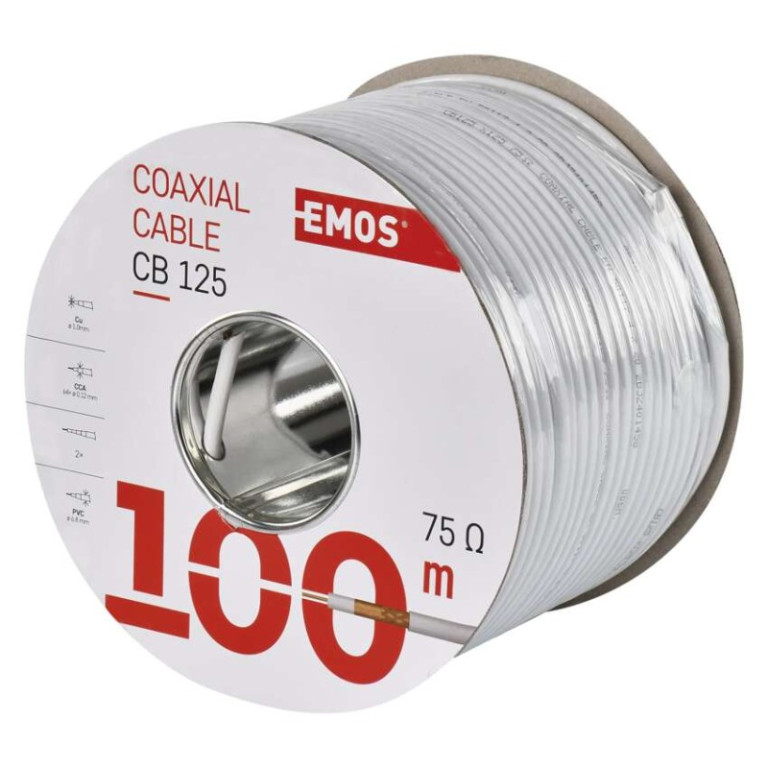

• sales package: 100 m, spool
• cable sheath diameter: 6.8 mm
• shielding diameter: 64 × 0.12 mm²
• Inner wire diameter: 1.00 mm
• cross-section of power supply wires: not applicable
• Storage temperature: -20 °C to 75 °C
• I.foil shielding: CCA/PES
• Shielding II. foil: no
• reaction to fire class: eca
• type of coaxial cable: CB125
• suitable for outdoor use: no
• intended use: indoor wiring, universal cable
• Warranty period: 5 years
• packing method - length: 100 m
• packing method - metre marking: 1-100 m
• packing method - coil type: paper coil
