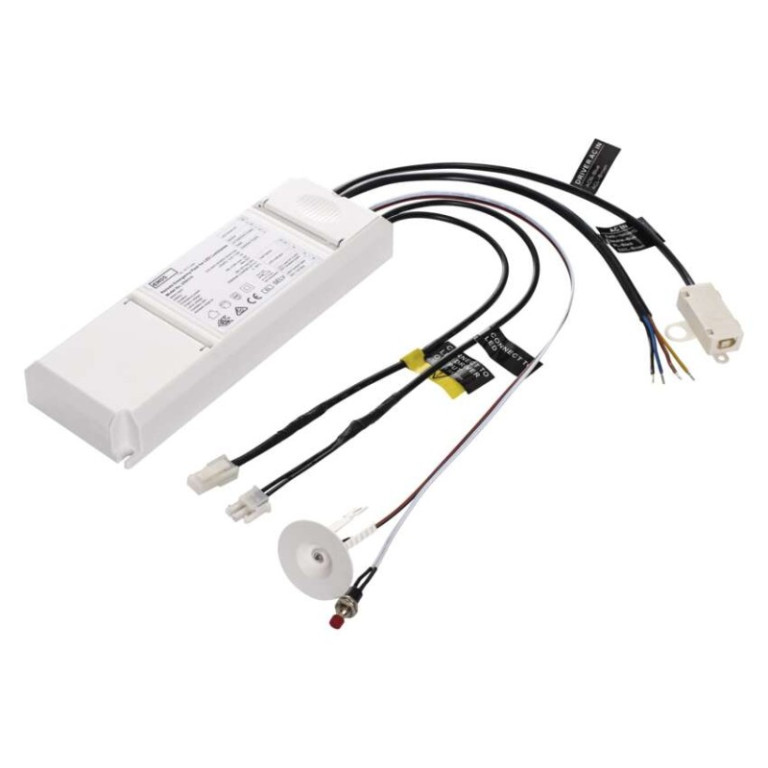

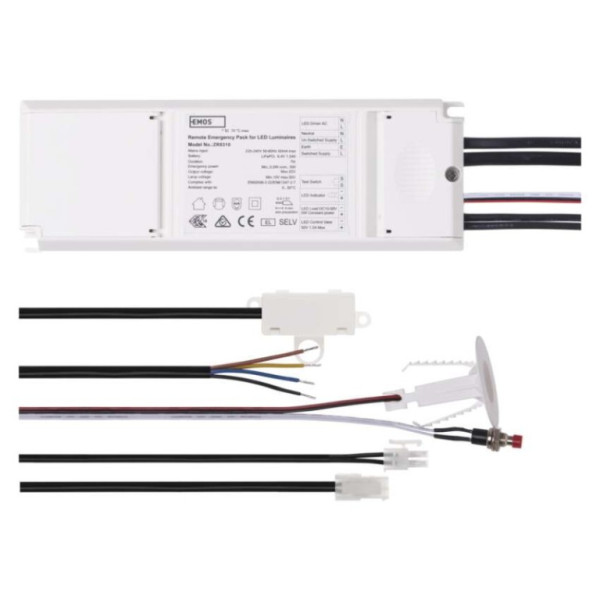

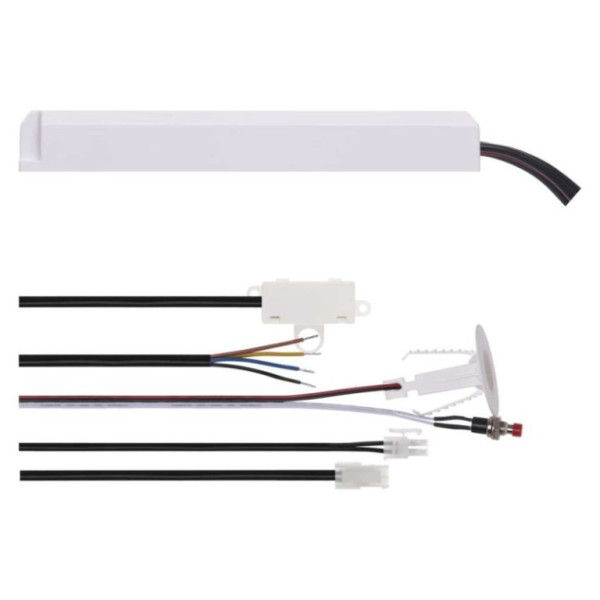

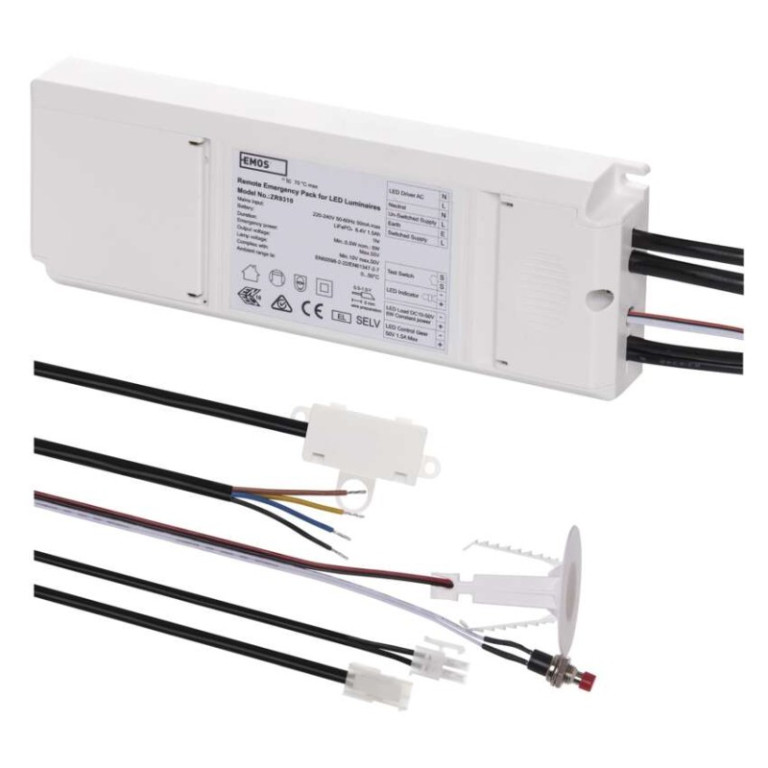

Emergency lighting module MT 6 W/1 h
Product descriptionThis emergency lighting module is especially suitable for luminaires with external power supply (LED panels, etc.). After a power failure, it provides up to 1 hour of additional lighting with a power of 6 W. The battery is included and automatically recharges during normal operation. A green LED indicates that it is charging. The module is equipped with a test button to test its function. The connected luminaire cannot be considered as certified emergency lighting in terms of legislation. More information
Availability:
In stock at manufacturer
Order. number:
18EMO02385
Weight:
0,0020 kilogram
Code:
ZR9310
61,05 €
73,87 € incl. VAT
- length of backup: 1 h
- Battery charging time: ≥ 16 hours
- supply voltage frequency: 50/60 Hz
- supply voltage: 220-240 V AC
- input power: 6 W max.
- Battery type: LiFePo4
- power factor: >0.6
- Input current: 10-50 mA
- output voltage: 10-50 V DC
- output voltage in emergency mode: 10-50 V DC, constant current
- Emergency output power: 6 W
- Warranty period: 3 years
